CineView SE 4K– Ultra-Low Latency 4K Wireless Transmission
Key Features：
- 4K UHD Wireless Video Transmission: Supports up to 4K input/output at 23.98/24/25/29.97/30fps via HDMI®, and up to 1080p via 3G-SDI/HDMI®, with H.265 encoding for clear, sharp image quality.
- Long-Range 1312ft / 400m Transmission: Delivers stable wireless video transmission up to 1312ft / 400m in clear, line-of-sight environments.
- Ultra-Low Latency Monitoring: Achieves latency as low as 0.05s at 1080p and 0.1s at 4K for smooth real-time monitoring.
- 1 Transmitter to 5 Devices: Supports up to 4 wireless receivers or mobile devices plus 1 wired USB-C monitor for flexible multi-device monitoring.
- USB-C Video Output: Transmits video and audio to compatible iOS and Android devices while supplying power at 5V/2.4A.
- USB and IP Camera Control: Supports shutter speed, aperture, ISO, white balance, touch focus, and bidirectional camera control with compatible Sony and Canon cameras.
- Accsoon SEE App Monitoring: Offers LUT loading, overlays, RGB/gray scale viewing, audio meters, histograms, waveforms, focus peaking, and other professional monitoring tools.
- RTMP/SRT Live Streaming: Enables direct live streaming to platforms such as YouTube, Facebook, and Twitch through the Accsoon SEE App.
- HDMI®/SDI Interfaces and Cross Conversion: Supports HDMI® and SDI input/output with cross-conversion between transmitter input and receiver output for flexible workflows.
- Flexible Power Options: Supports NP-F series batteries and DC input from 7.4V to 16.8V for reliable power during production.
- Wide Device Compatibility: Works with CineView SE 4K Receiver, CineView Master 4K Receiver, CineView Master 4K Lite Receiver, CineView M7 Pro/M7H Pro, iOS devices, Android devices, and MacBook models with M-series chips.
- Package Includes: Comes with one SE 4K transmitter, one SE 4K receiver, two cold shoe mount adapters, eight antennas, and one user manual.
Our Services & Guarantees
Free shipping on all orders. Delivery time varies by region.
All products are covered by a one-year manufacturer warranty.
Return or exchange within 14 days if you’re not satisfied.
Our team is here to help with setup, usage, and troubleshooting.
Secure Payment Methods
CineView SE 4K
$499.00
Let’s take a closer look.
4K UItra HDImage Quality
H.265 Efficient Encoding
CameraControl Support

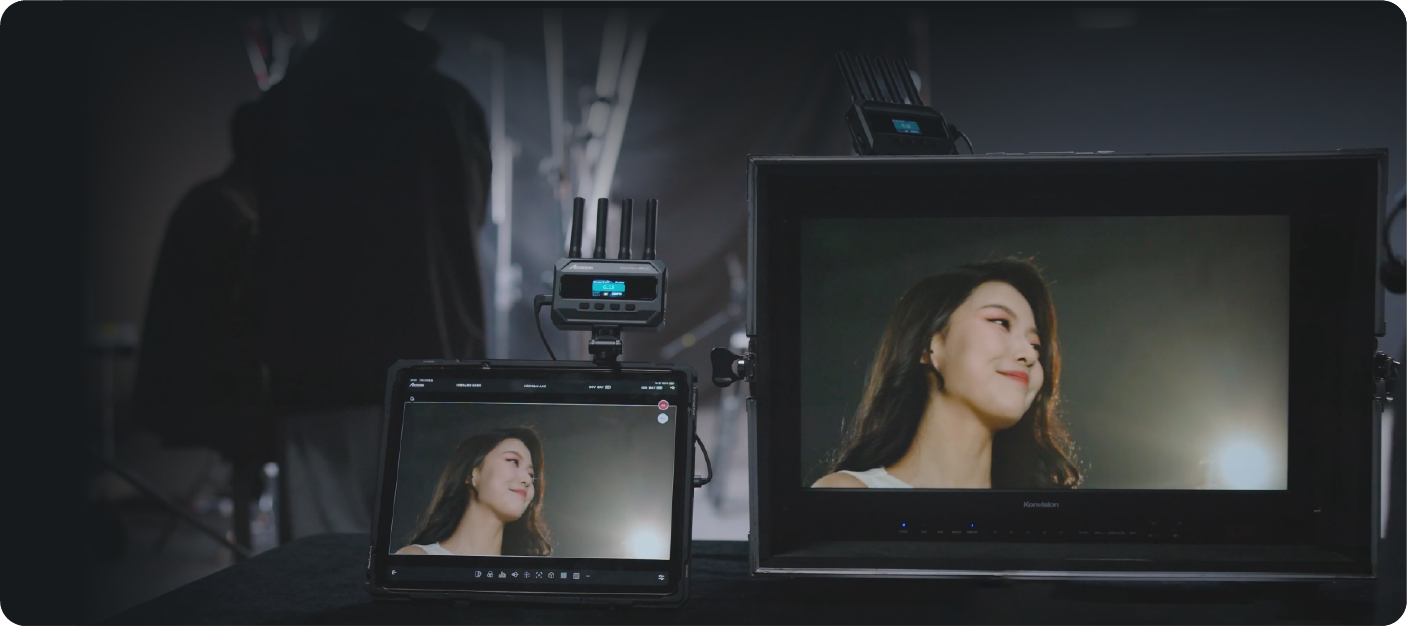

USB Wired Monitoring for Mobile Devices Supported on Both TX & RX
Less than 50ms latencyTransmit Up to 1300ft/400m

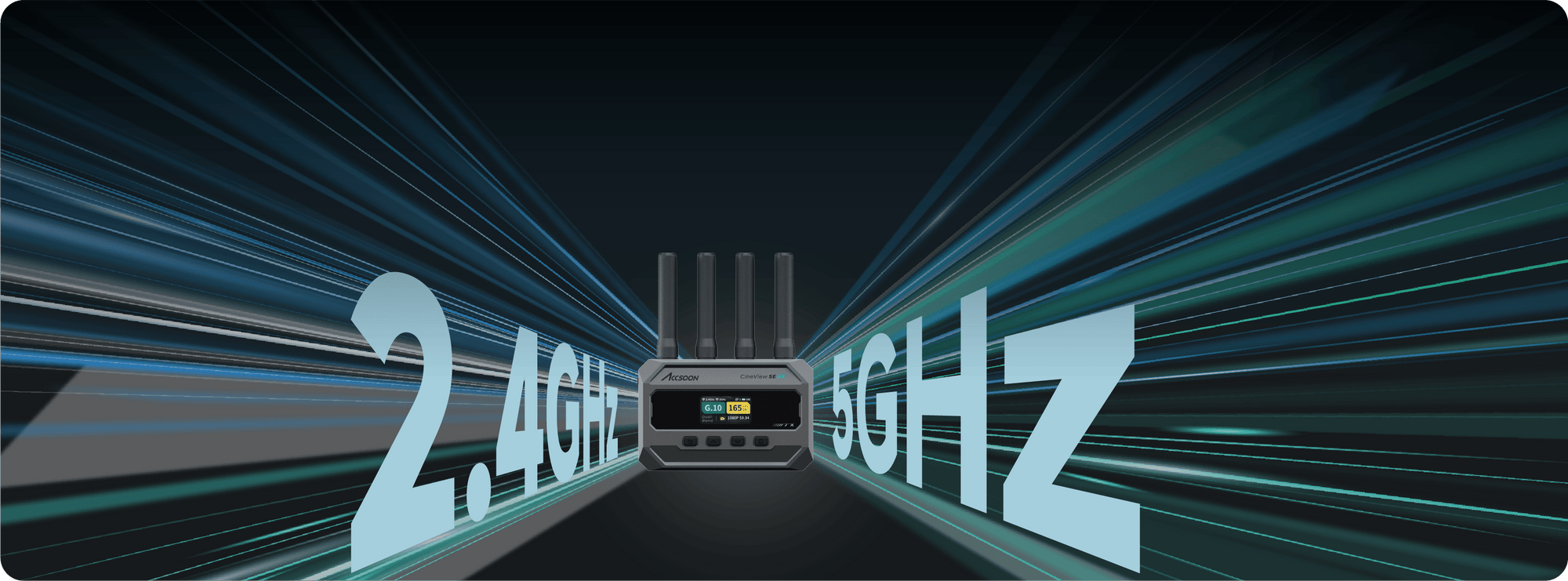

New Generation Dual-Band(2.4GHz+5GHz) + DFS transmission

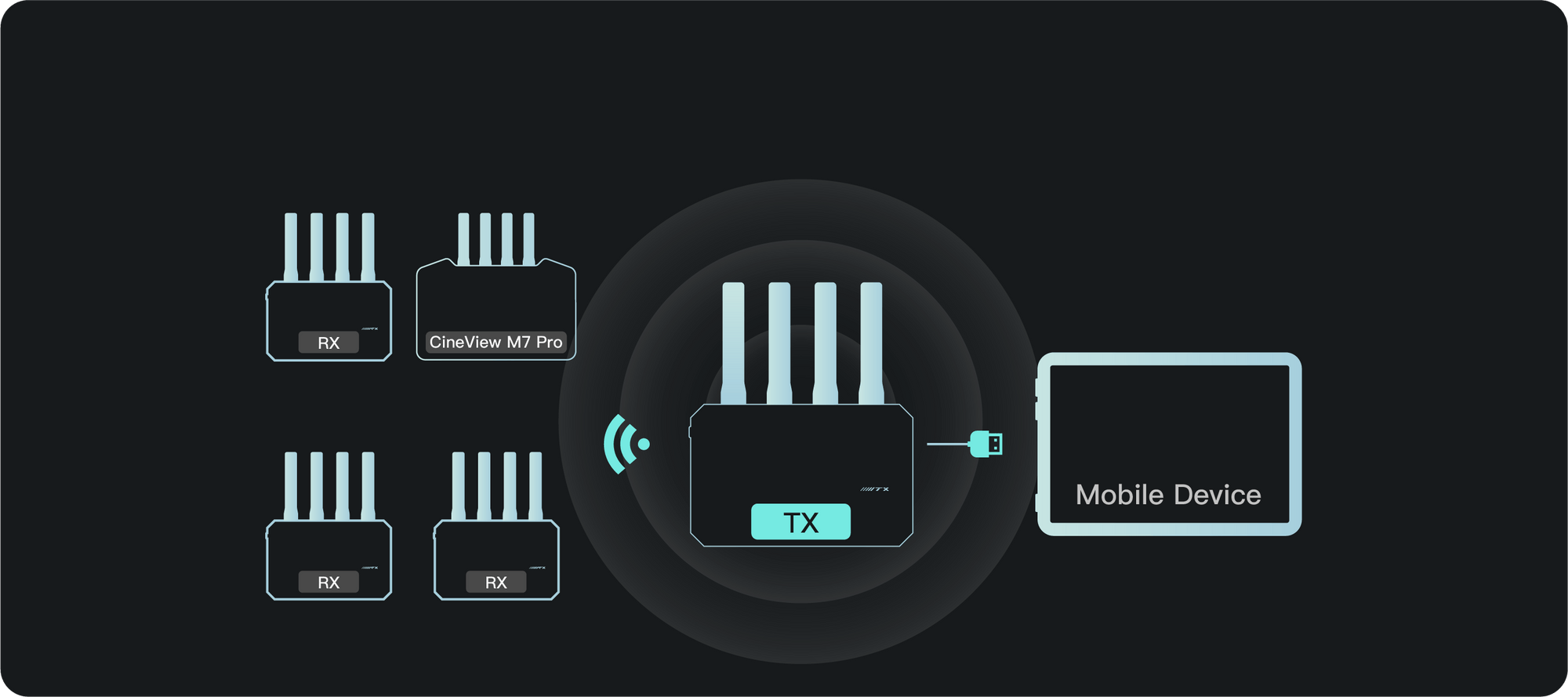

Monitoring on Up to 5 Devices

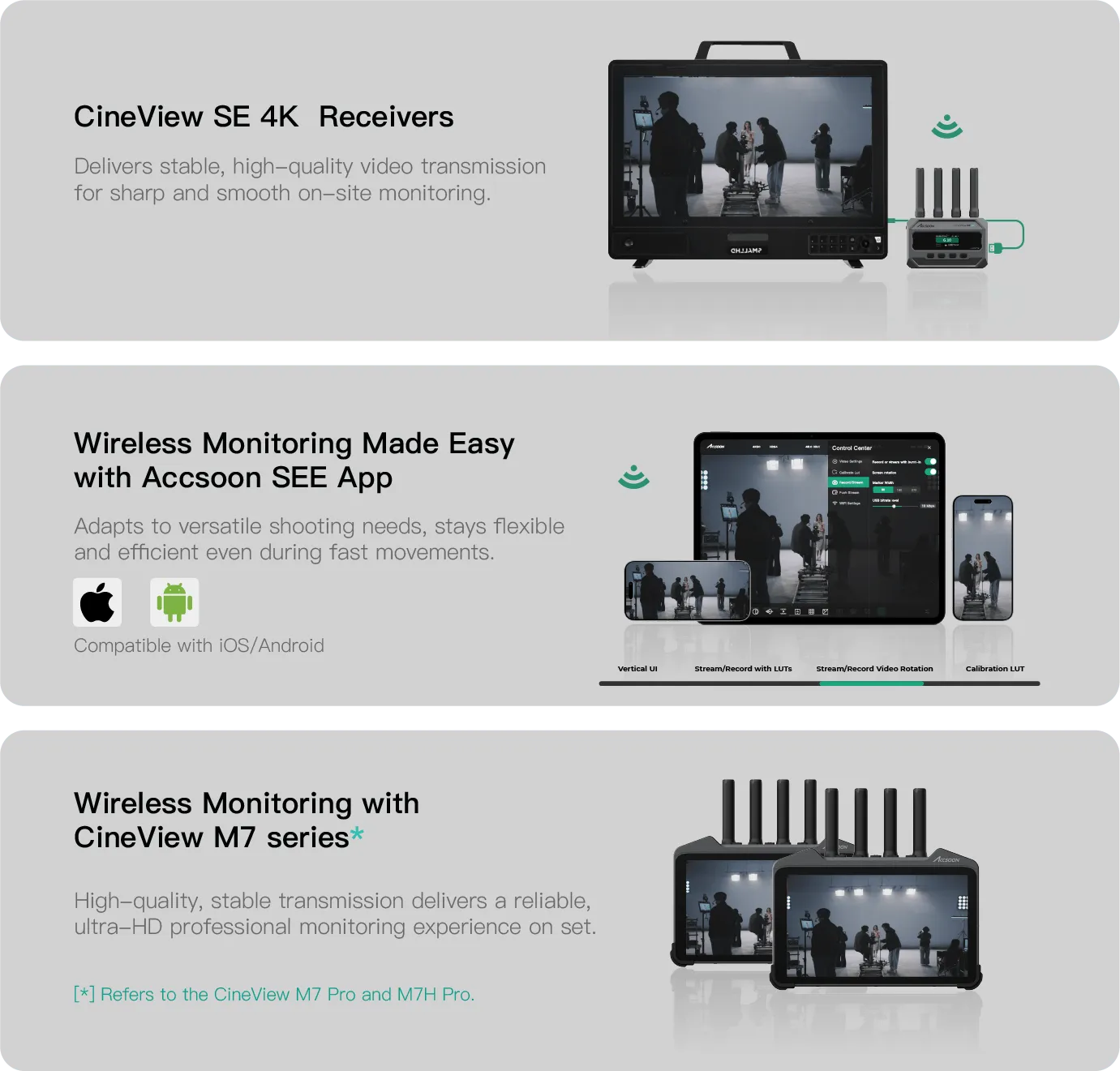

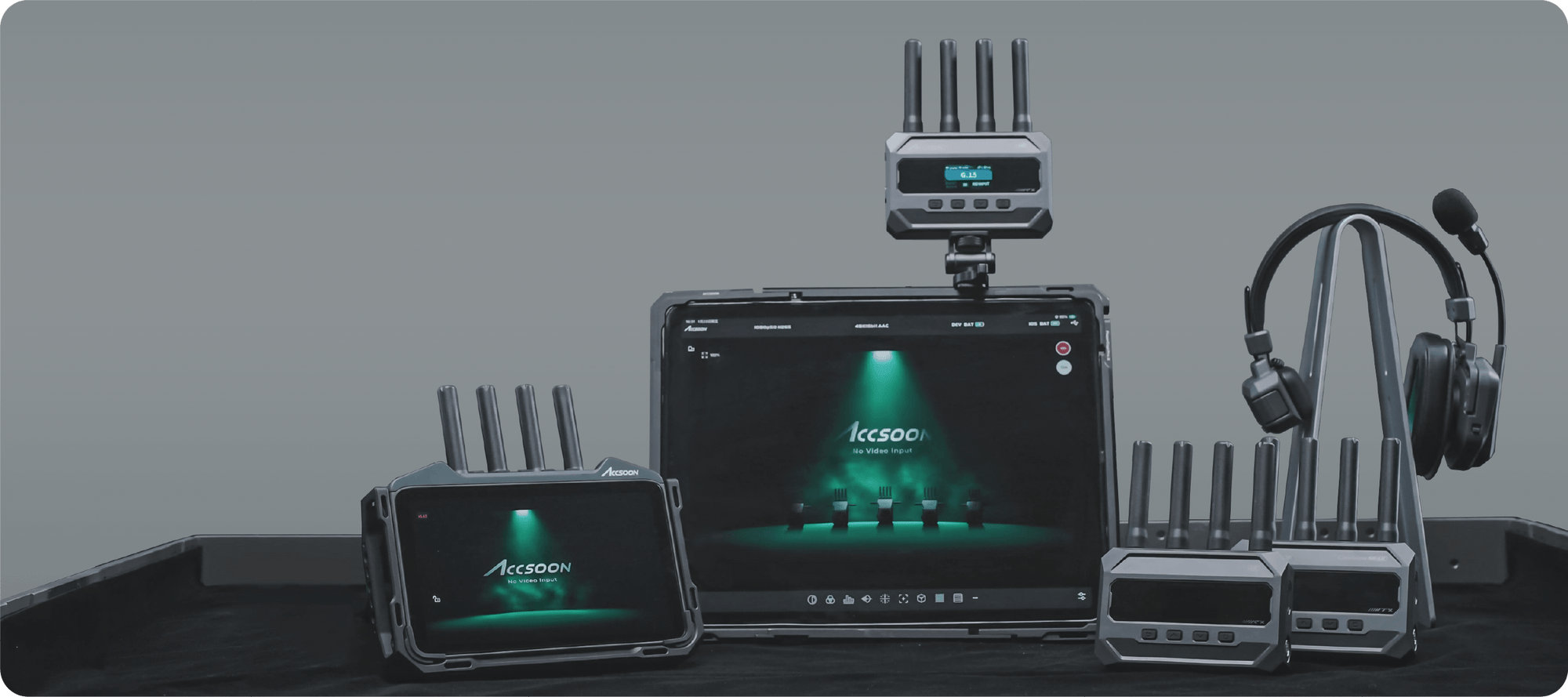

Accsoon Wireless Ecosystem

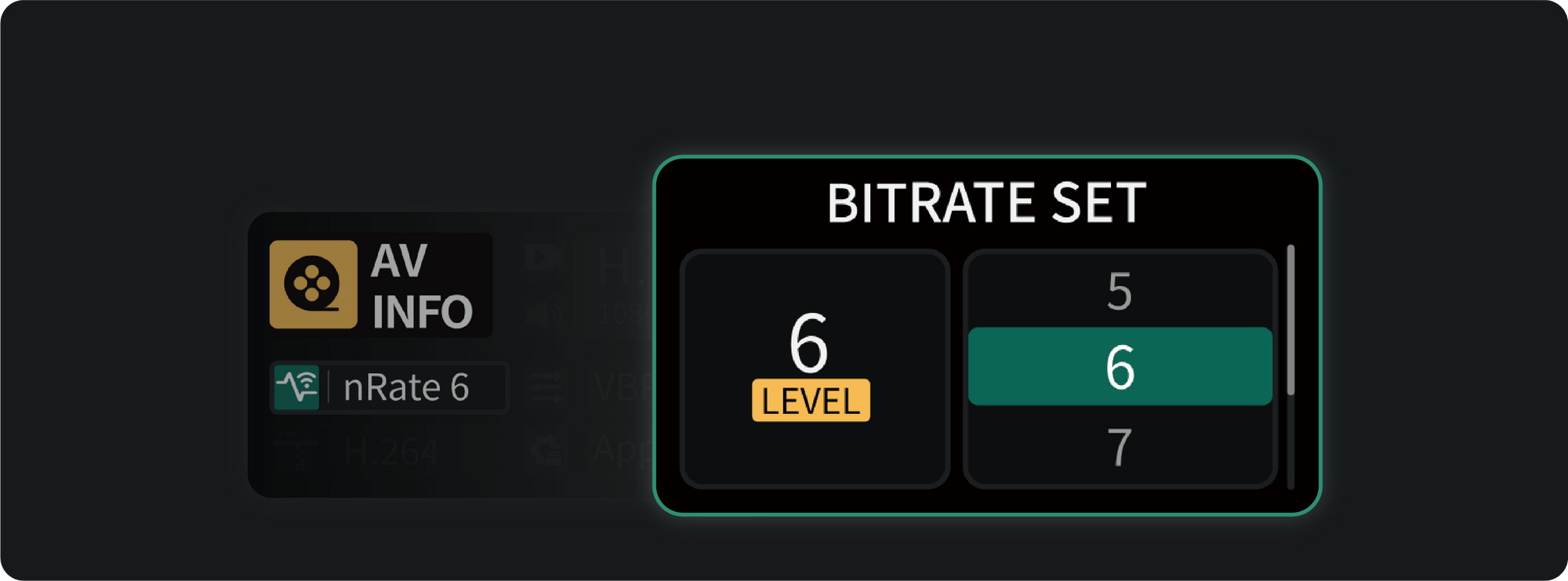

1-12 Level Adjustable Bitrate
Versatile Interfaces

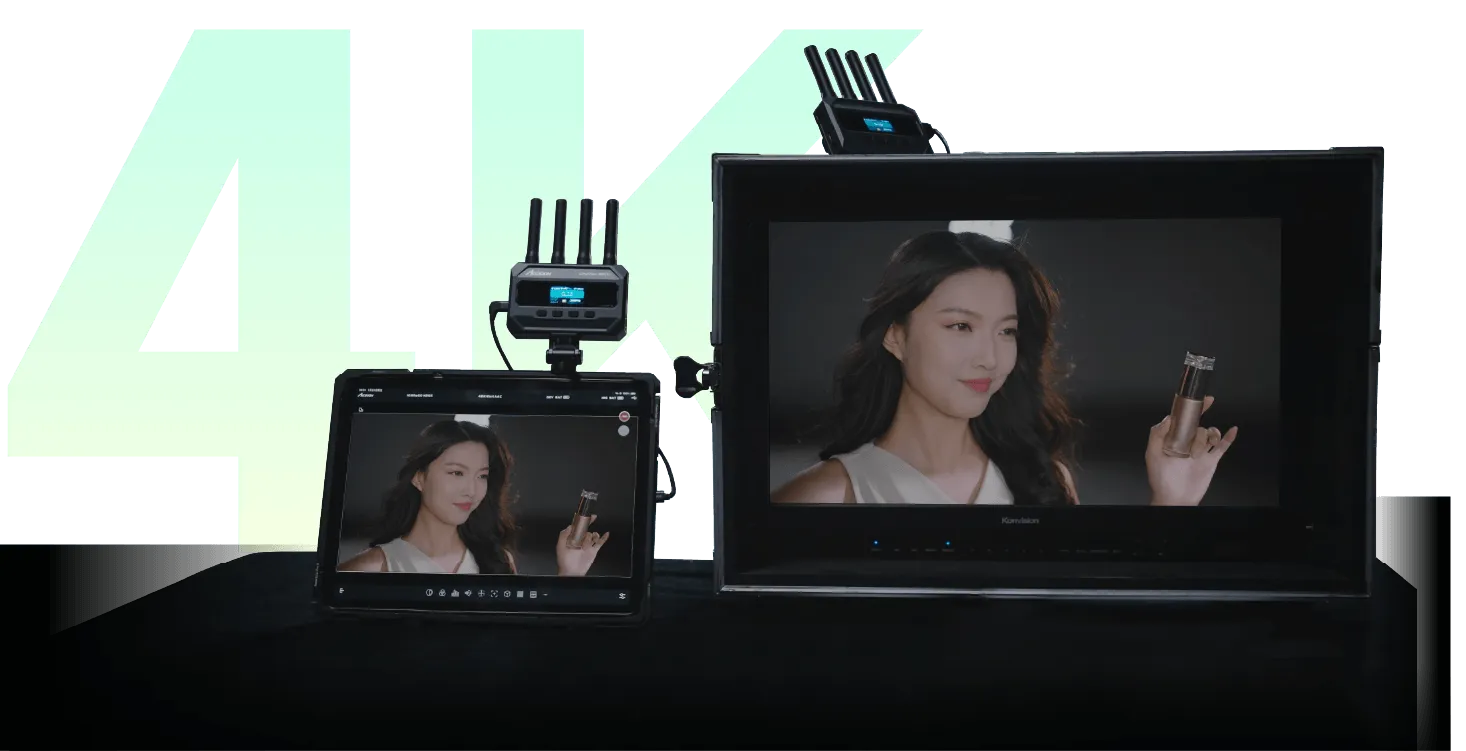

True-to-Life 4K
H.265 High Efficiency Video
CodingAdvanced H.265 encoding brings 4K wireless transmission to a new level of clarity and stability.
At the same bitrate, images are cleaner, motion is smoother, and every detail is preserved,
so directors, cinematographers, and clients see exactly what matters.
At the same bitrate, images are cleaner, motion is smoother, and every detail is preserved,
so directors, cinematographers, and clients see exactly what matters.
End-to-End 4K30
From input to output, the CineView SE 4K elevates the visual standard to 4K resolution, with sharper
detail and clearer images throughout the entire workflow.
detail and clearer images throughout the entire workflow.

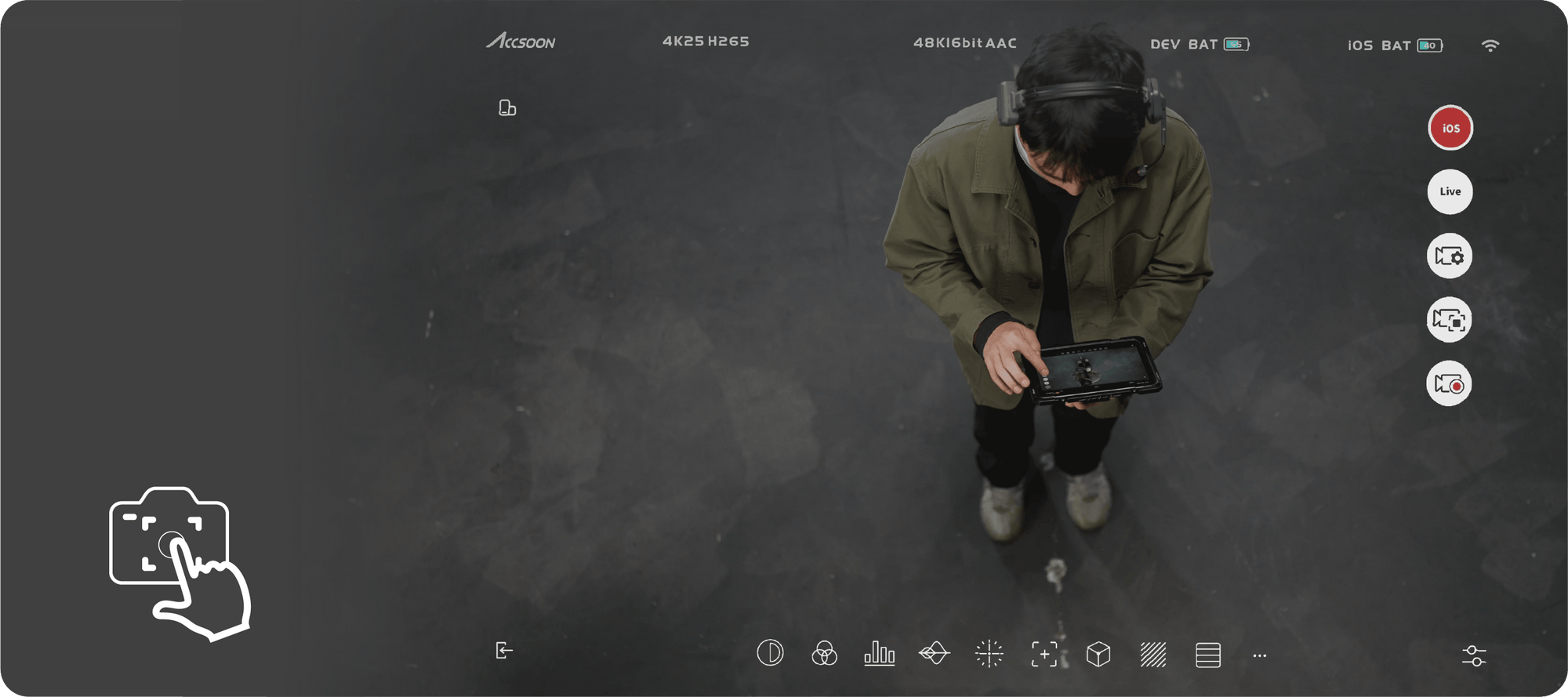

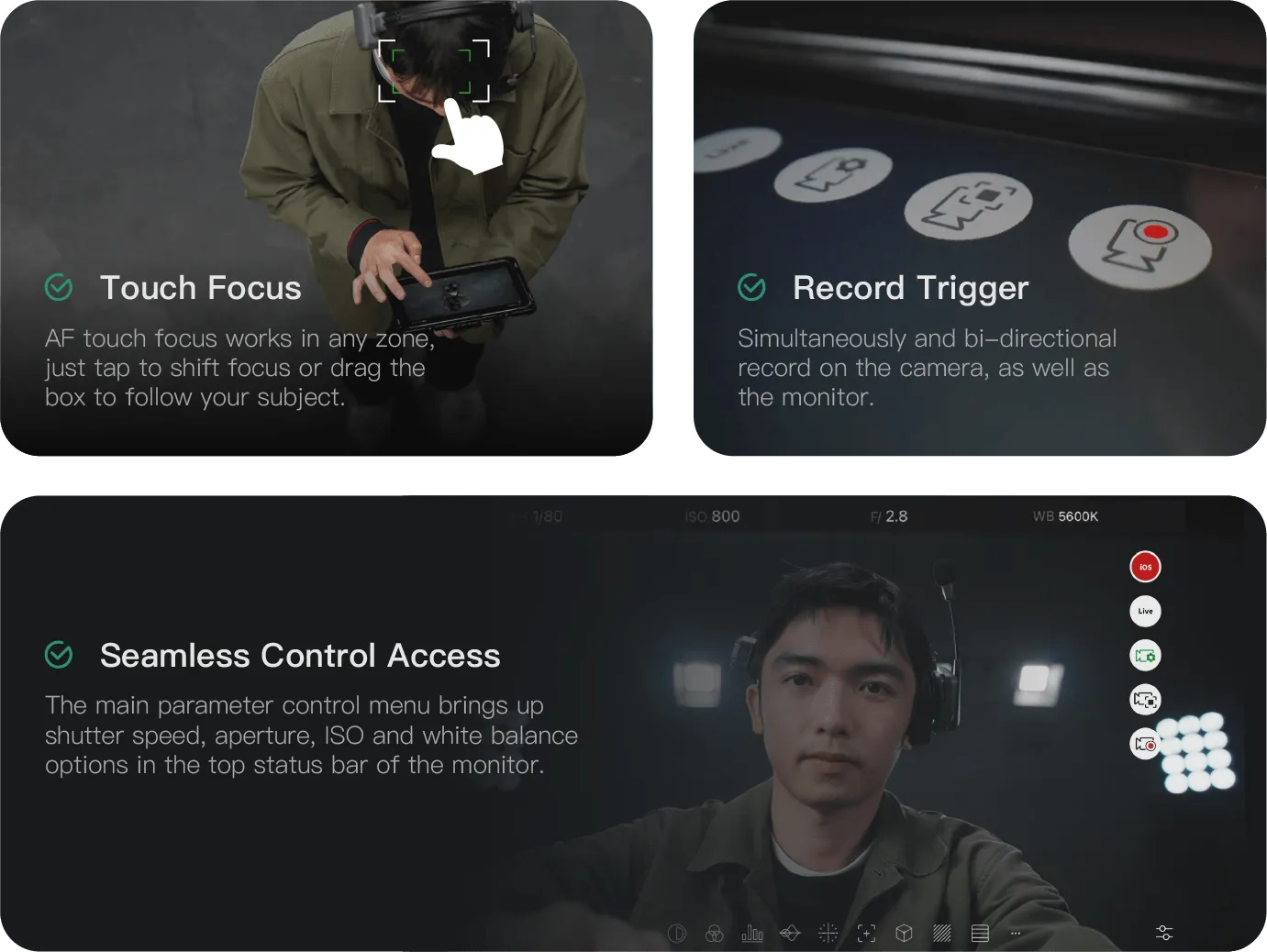

Wireless Camera Control Gets Smarter
CineView SE 4K adds wireless camera control, allowing the camera to be operated remotely
through the Accsoon SEE App. Powered by advanced wireless transmission technology, delivering a stable
and low-latency control experience, greatly improving creative efficiency and precision.
*Support camera models Sony FX3 FX30 A7C II A7SM3 A7M4 A9M3 | Canon R5 R6 R5 II R6 II R7 R8
*Accsoon is committed to adding additional cameras from other makers, as well as additional Canon and Sony models.
*Camera control is only supported via Wi-Fi connection to the transmitter, not available through RX USB connection.
Direct On-camera VideoOutput toYour Mobile Device

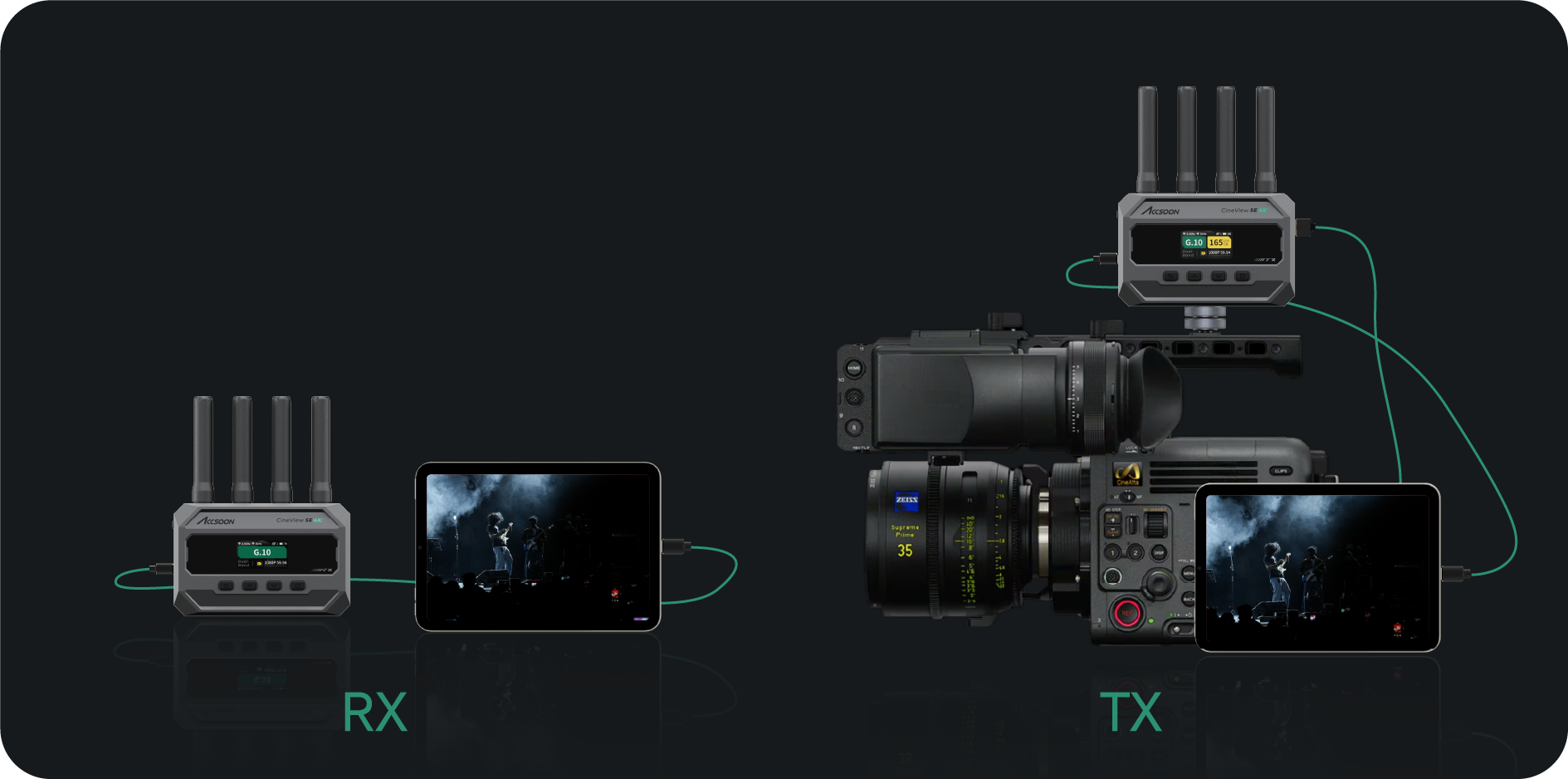

Direct USB Video Output
USB-C Video output on both transmitter and receiver.
Wired Connection Without Latency
Create smoothly and seamlessly,with everydetail in real time.

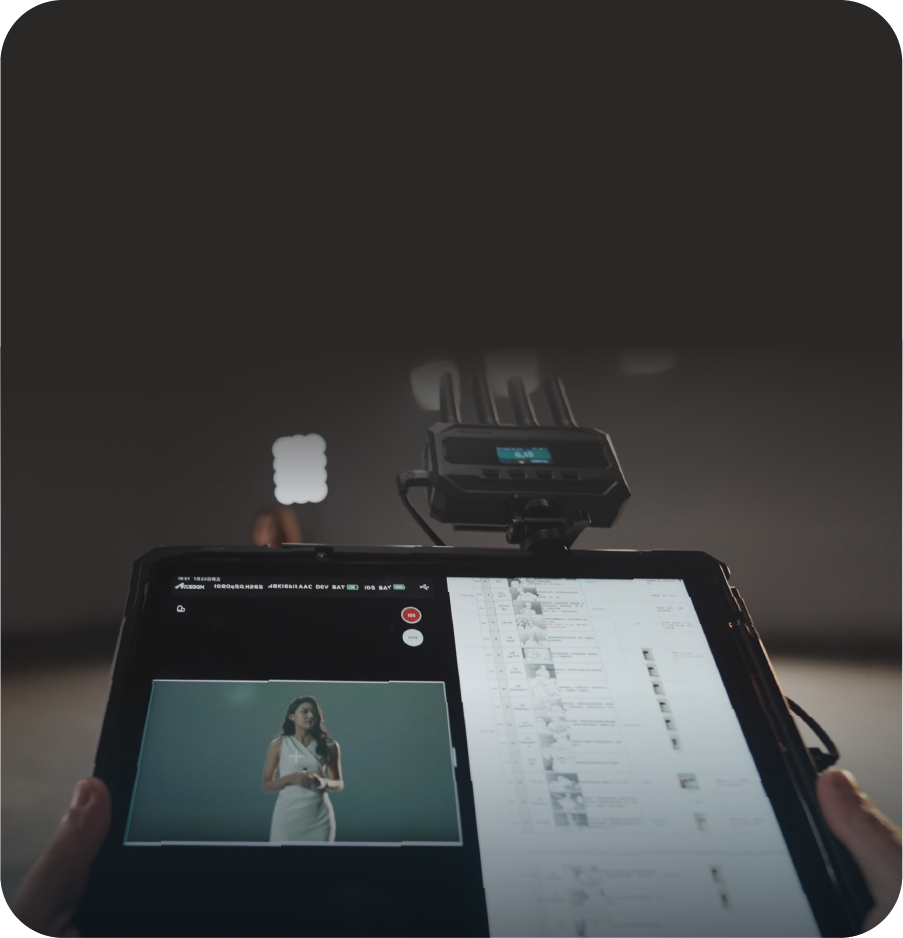

Reliable 4KImage Quality
Capturing the details you need.
Charge Your Mobile Device
charge the connected mobile device at the same time overLightning or USB-C.

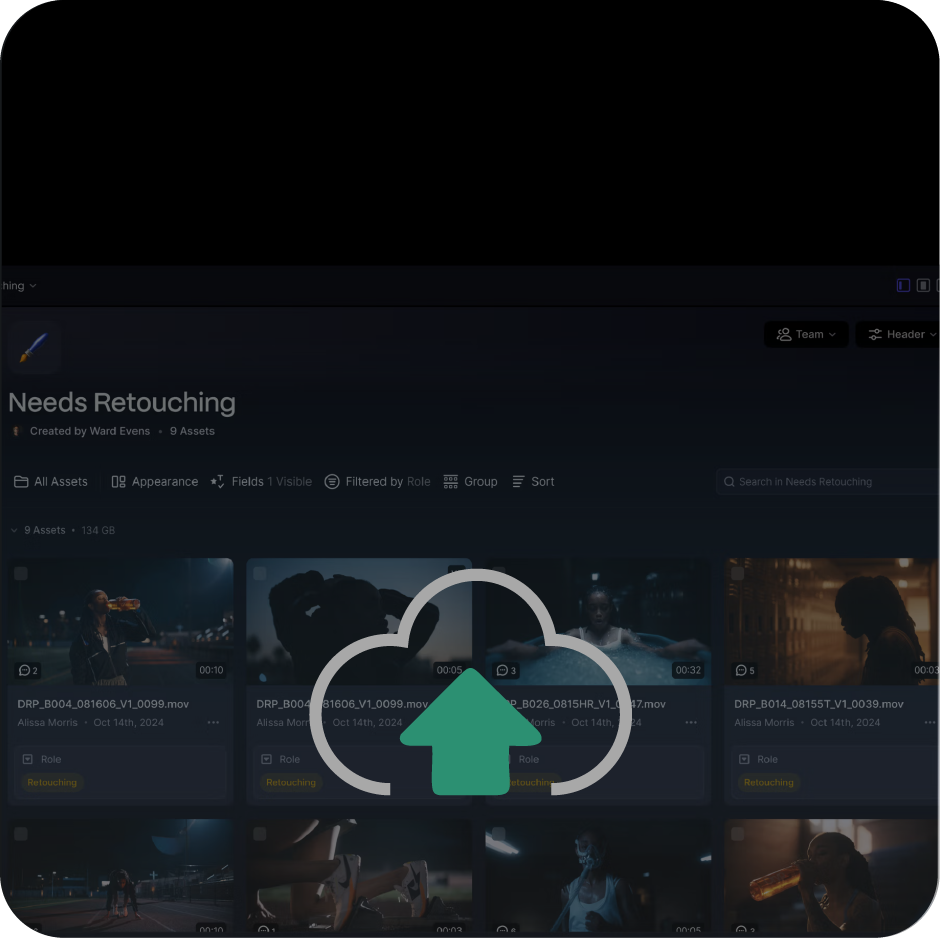

Camera to Cloud
Needs BetoucbiogEasily share your creations to Frame.iothrough the C2C integration, enablingreal-time automatic uploads from almost any camera to the cloud.

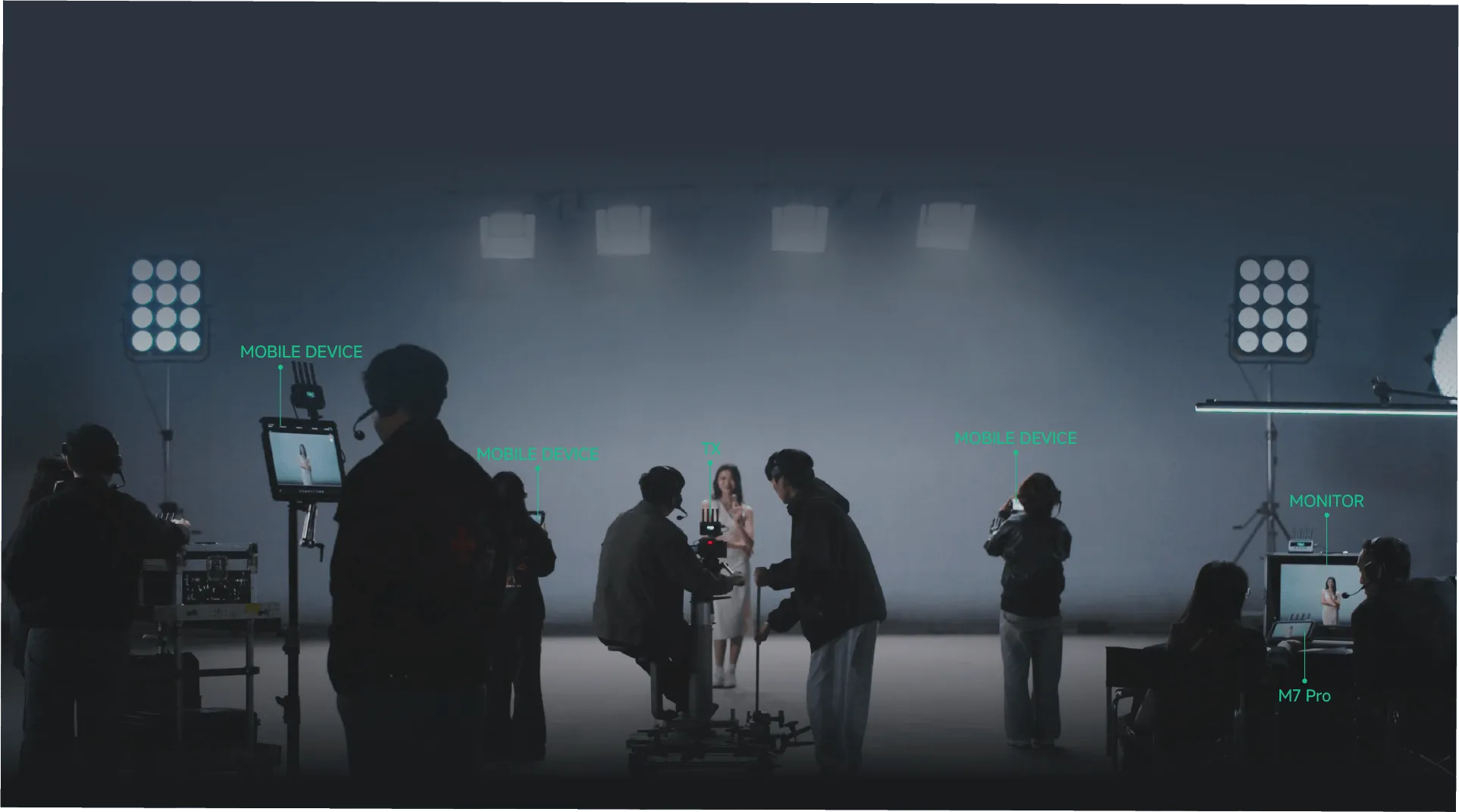

Versatile Wireless Connections forAny Production Crew
Wireless Solution for Any Use Case
Specifications
| Protocol | Proprietary RTMS 4.0 protocol developed by Accsoon |
| Video Input | HDMI® In 3G SDI In |
| Video Output | USB Video Out |
| Camera Control | USB-C |
| SDI Input | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B |
| HDMI® Input | UHD 4K: 23.98/24/25/29.97/30p 1080p: 23.98/24/25/29.97/30/50/59.94/60p |
| SDI Output | |
| HDMI® Output | |
| DC Port | 5.5mm×2.1mm, center positive |
| DC Voltage | 7.4~16.8V |
| Battery | Compatible with NP-F550, NP-F750, NP-F970 battery |
| Power Consumption | 4.4W average *Without powering other devices |
| Audio | HDMI® embedded, SDI embedded |
| Latency | TX to RX 1080p < 50ms 4K 30 < 100ms TX to iOS 1080p < 50ms 4K 30 < 100ms (Camera latency not included) |
| Transmission Range | ≥ 400 m (No obstacles, no interference) |
| Operating Environment Temperature | -10~40°C |
| Dimensions (Antennas Not Included) | 110mm × 32.7mm × 74mm |
| Weight (Antennas Not Included) | 245g |
| Protocol | Proprietary RTMS 4.0 protocol developed by Accsoon |
| Video Input | |
| Video Output | HDMI® Out 3G SDI Out USB Video Out |
| Camera Control | |
| SDI Input | |
| HDMI® Input | |
| SDI Output | 1080p: 23.98/24/25/29.97/30/50/59.94/60p Level A |
| HDMI® Output | UHD 4K: 23.98/24/25/29.97/30p 1080p: 23.98/24/25/29.97/30/50/59.94/60p |
| DC Port | 5.5mm×2.1mm, center positive |
| DC Voltage | 7.4~16.8V |
| Battery | Compatible with NP-F550, NP-F750, NP-F970 battery |
| Power Consumption | 4.4W average *Without powering other devices |
| Audio | HDMI® embedded, SDI embedded |
| Latency | TX to RX 1080p < 50ms 4K 30 < 100ms TX to iOS 1080p < 50ms 4K 30 < 100ms (Camera latency not included) |
| Transmission Range | ≥ 400 m (No obstacles, no interference) |
| Operating Environment Temperature | -10~40°C |
| Dimensions (Antennas Not Included) | 110mm × 32.7mm × 74mm |
| Weight (Antennas Not Included) | 245g |
Product Comparison
| Product |
CineView SE |
CineView HE |
CineView SE 4K |
CineView Nano |
|---|---|---|---|---|
| Latency | <50ms | <60ms | <50ms | <60ms |
| Max Resolution | 1080p/60 | 1080p/60 | 4K/30 or 1080p/60 | 1080p/60 |
| Range | 1200ft | 1200ft | 1300ft | 500ft |
| Input & Output | SDI IN&OUT HDMI IN&OUT |
HDMI IN&OUT HDMI LOOP OUT UVC Live Streaming |
SDI IN&OUT HDMI IN&OUT USB Video Out |
HDMI IN |
| Antenna | Swappable Antenna* | Swappable Antenna* | Swappable Antenna | Built-in Antenna |
| Powered By | NP-F Battery 7.4-16.8V DC IN 5V USB-C IN |
NP-F Battery 7.4-16.8V DC IN 5V USB-C IN |
NP-F Battery 7.4-16.8V DC IN |
NP-F Battery 5V USB-C IN |
| Dimensions | 105×66×32mm (Antennas not included) |
105×66×32mm (Antennas not included) |
110×32.7×74mm (Antennas not included) |
76×113×20mm (Antennas not included) |
| Weight | 210g (Antennas not included) | 200g (Antennas included) | 245g (Antennas included) | 72.3g (Antennas Not Included) |
