Accsoon CineView Master 4K Lite-4K60 Wireless Video Transmission System
Key Features：
- Supports up to 4K UHD (3840×2160) video input and output via HDMI® at up to 60fps, with 1080p support over SDI and HDMI®, delivering sharp and detailed image quality using H.265 encoding.
- Delivers ultra-low latency performance with 1080p60 under 60ms and 4K60 under 100ms (camera latency not included), ensuring near real-time monitoring for professional workflows.
- Provides a transmission range of up to 350m (1200 ft) in open, interference-free environments, maintaining stable signal performance over long distances.
- Utilizes dual-band 2.4GHz and 5GHz wireless transmission for improved signal stability and reliability across different shooting environments.
- Supports simultaneous output to up to 5 devices, including 4 wireless receivers or mobile devices and 1 wired USB-C connection.
- Features USB-C video output with simultaneous power delivery (5V/2.4A), enabling direct monitoring on compatible iOS and Android devices (cables sold separately).
- Enables camera control functions such as shutter, aperture, ISO, and white balance for select Sony and Canon models via direct WiFi connection on the transmitter.
- Works with the Accsoon SEE App for real-time monitoring, recording, and advanced tools including waveform, false color, and focus assist, improving on-set efficiency.
Our Services & Guarantees
Free shipping on all orders. Delivery time varies by region.
All products are covered by a one-year manufacturer warranty.
Return or exchange within 14 days if you’re not satisfied.
Our team is here to help with setup, usage, and troubleshooting.
Secure Payment Methods
Accsoon CineView Master 4K Lite
$729.00
Let’s take a closer look.

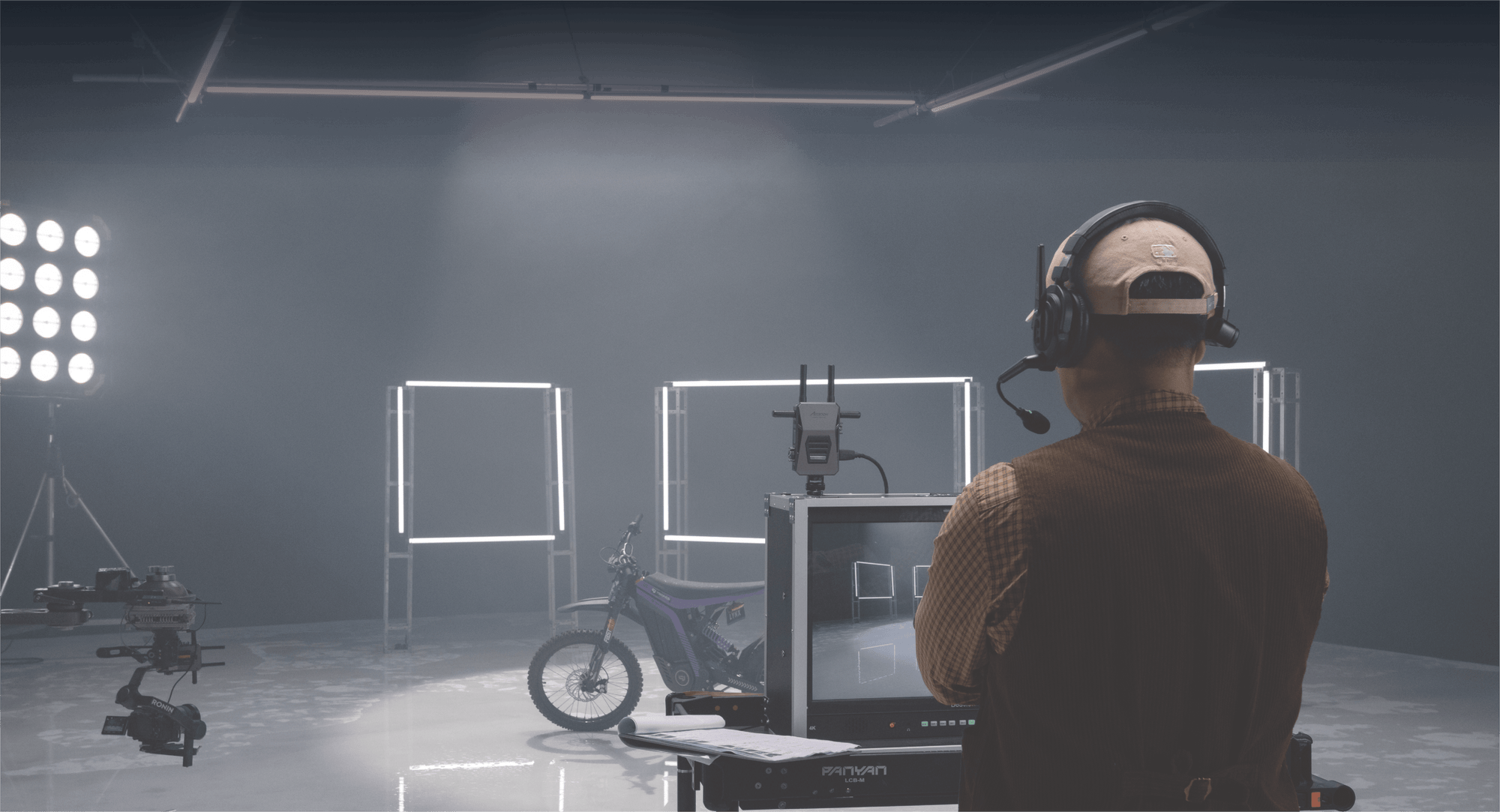

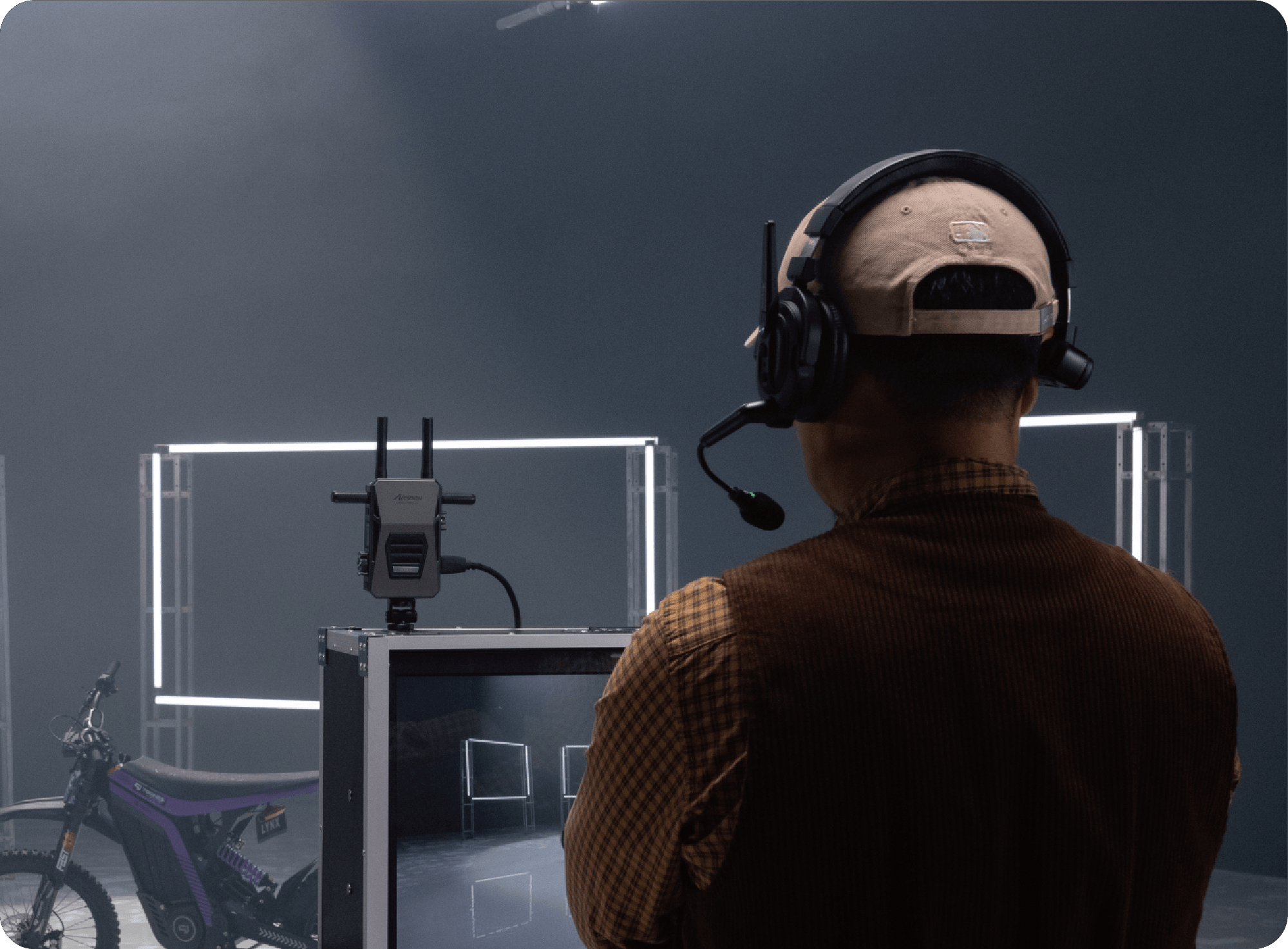

End to End 4K60

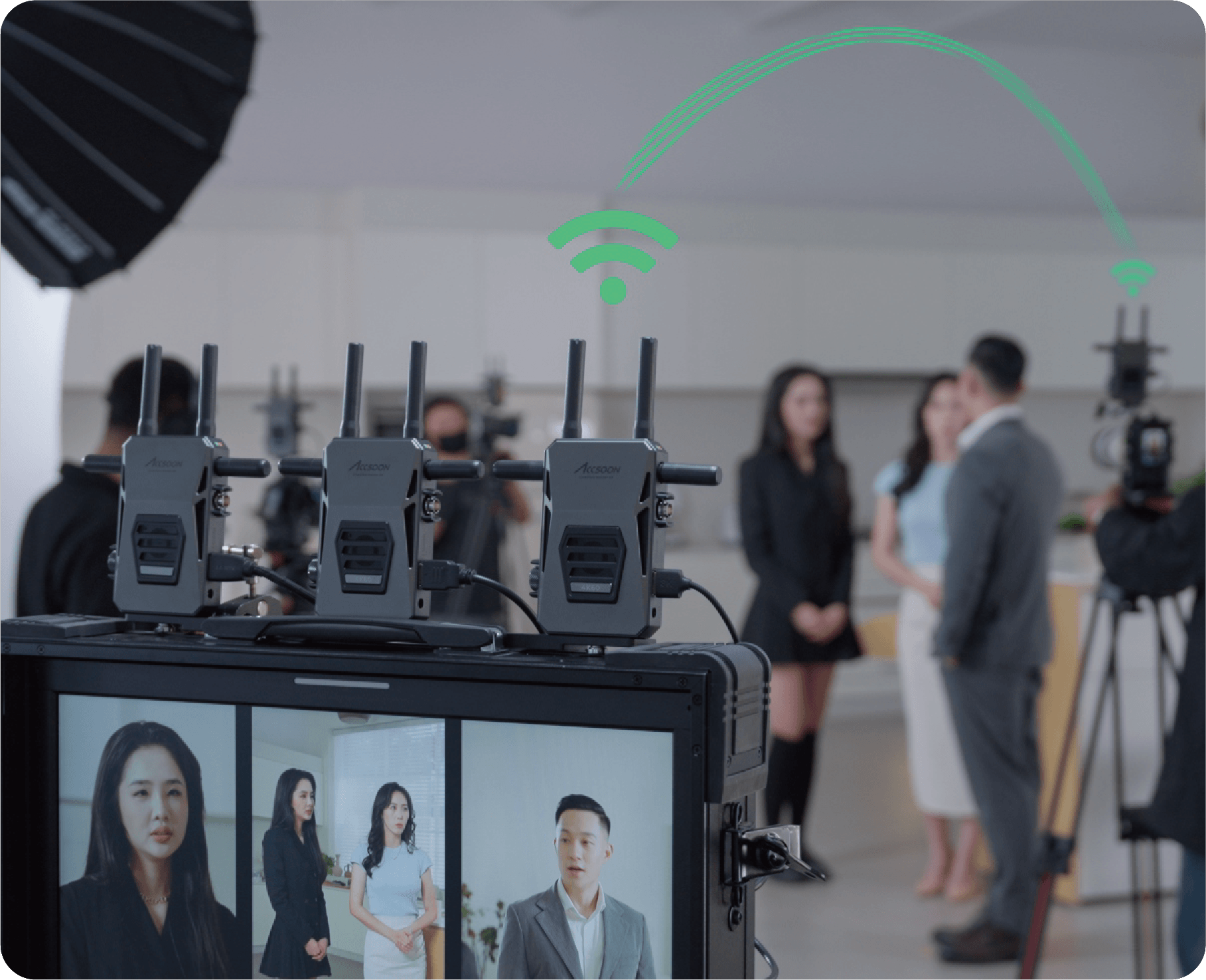

New Generation Dual-Band(2.4GHz+5GHz) + DFS transmission
Less Than 35ms LatencyTransmit Up to 1200ft/350m

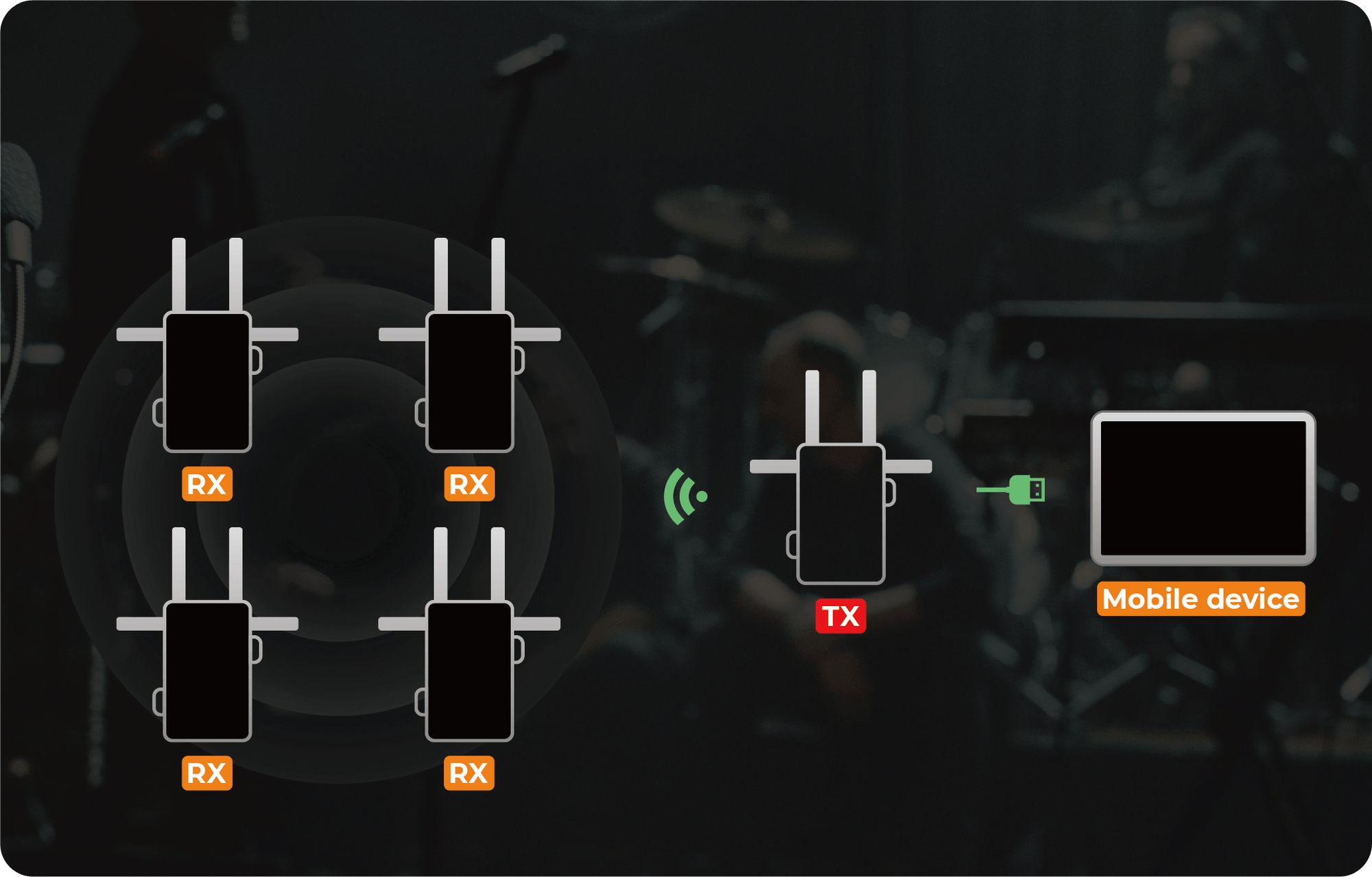

Monitoring on Up to 5 Devices

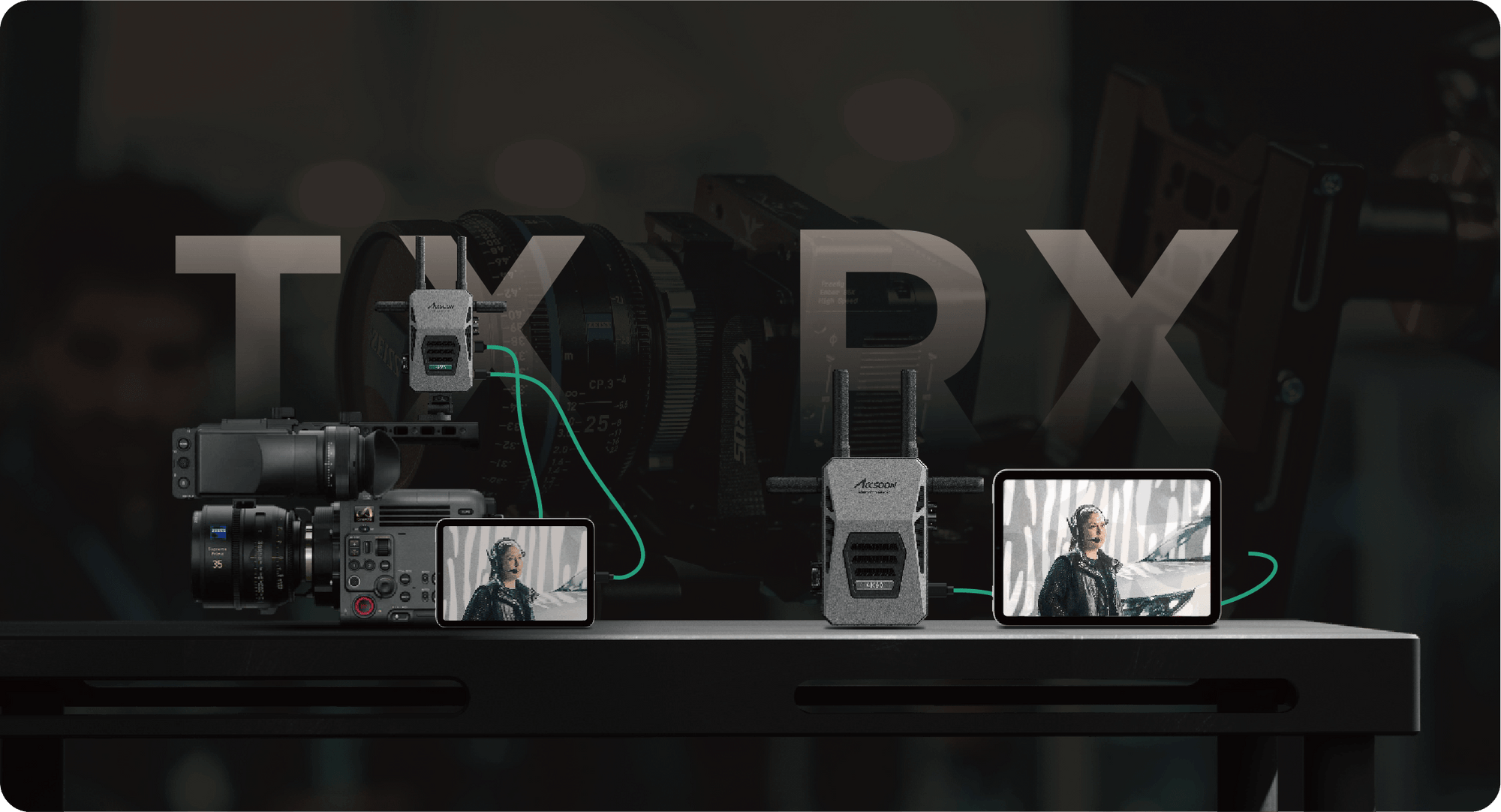

USB Wired Monitoring for Mobile Devices Supported on Both TX & RX

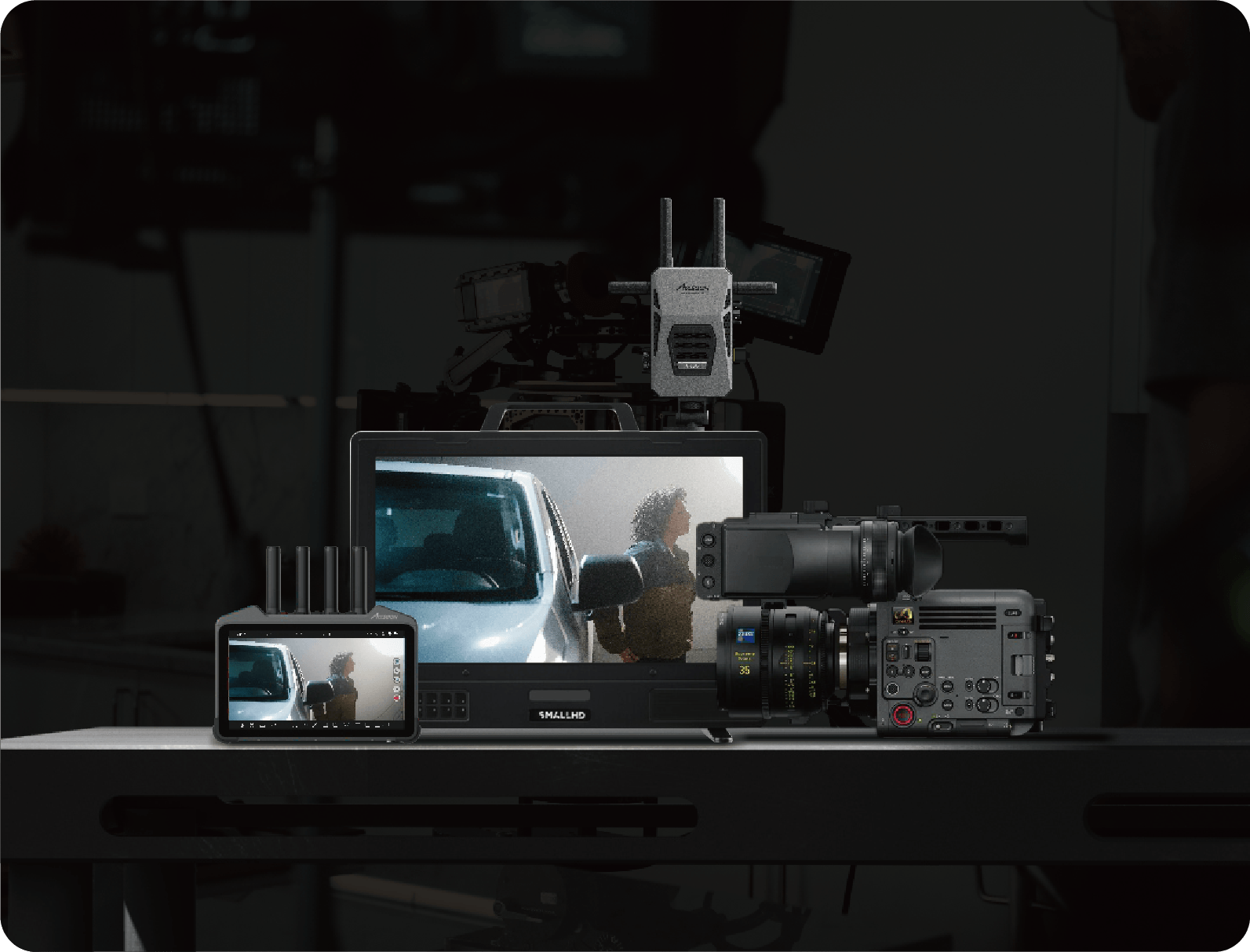

Camera Control Support

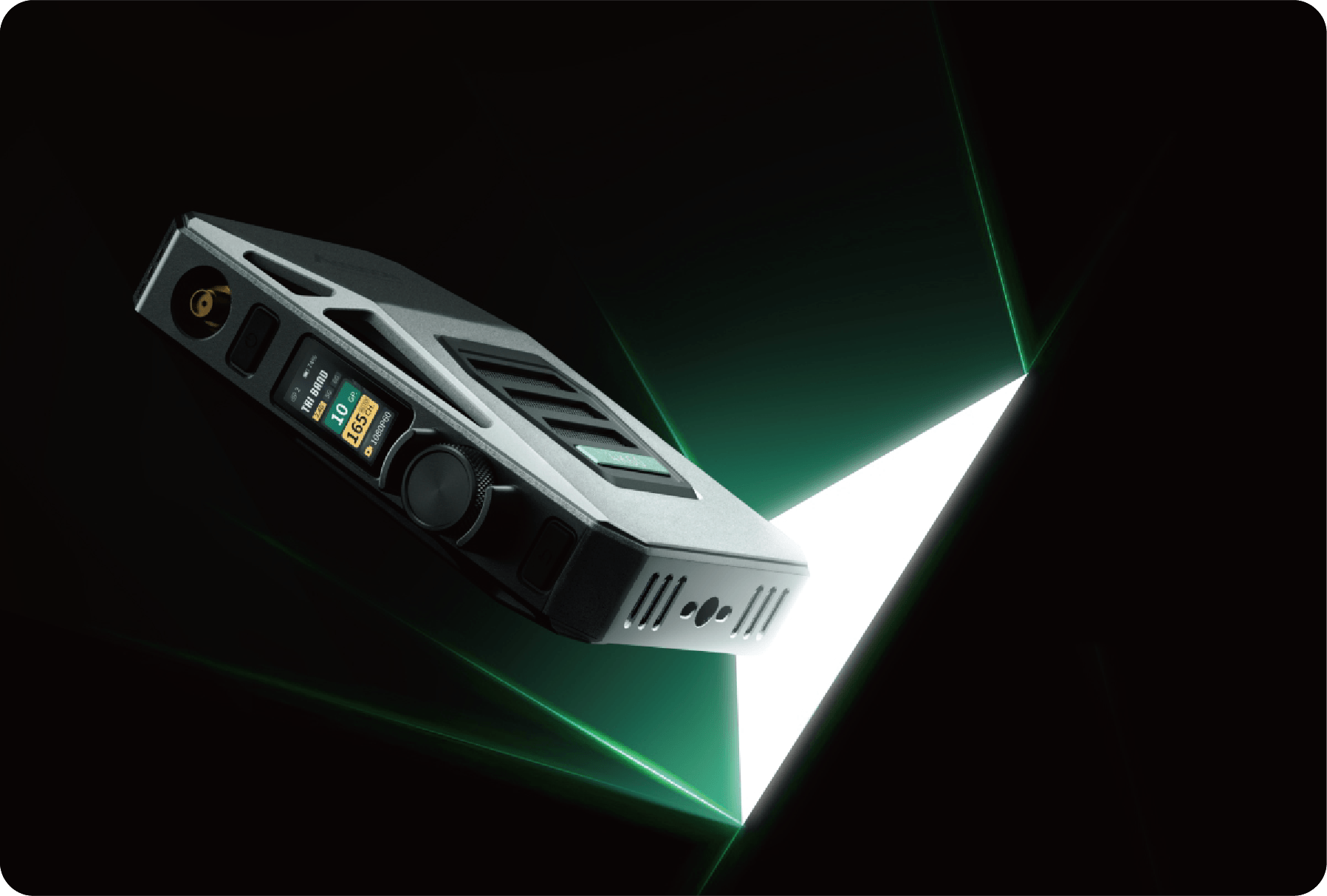

Industrial Aesthetic design

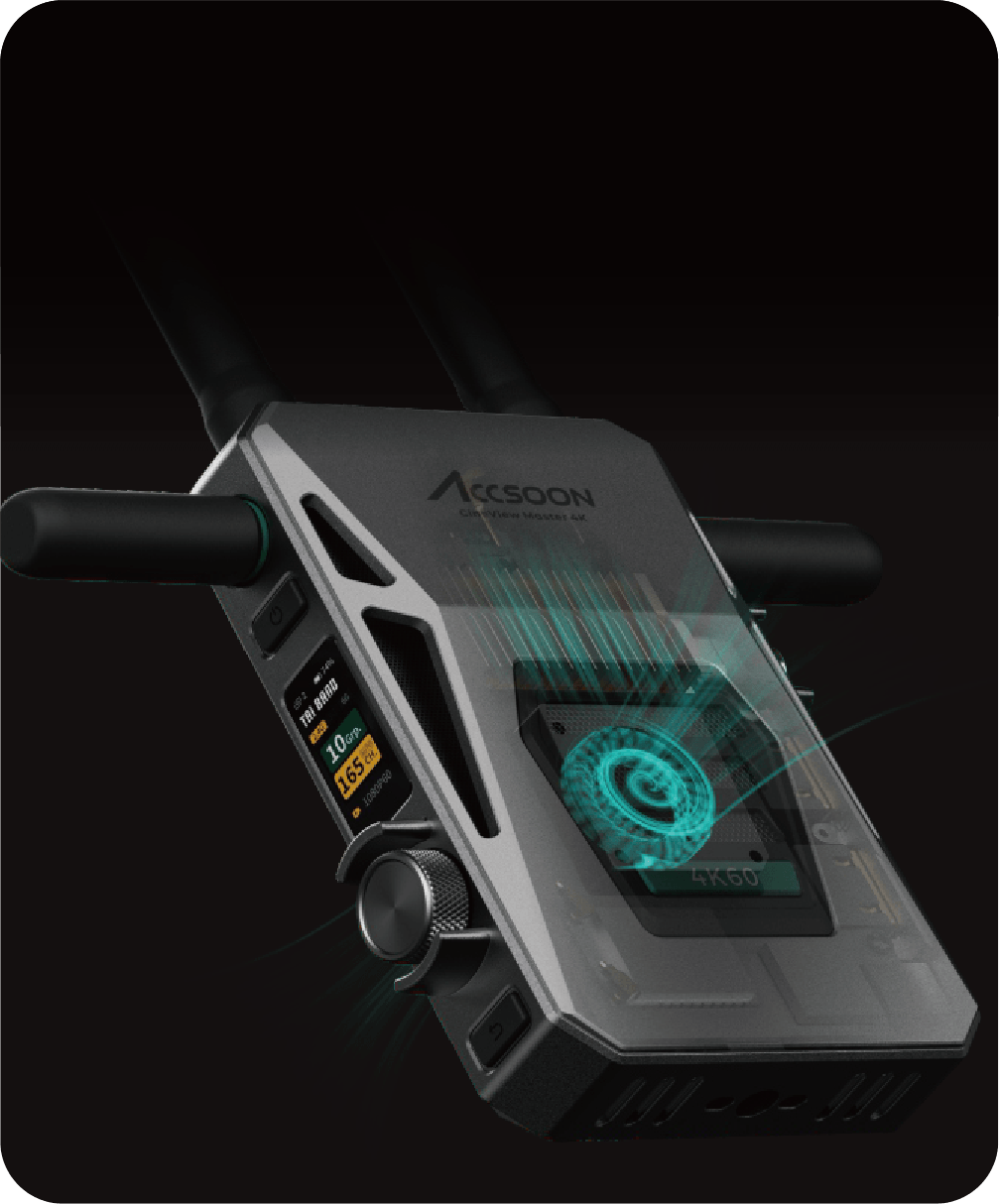

Intelligent heat Dissipation

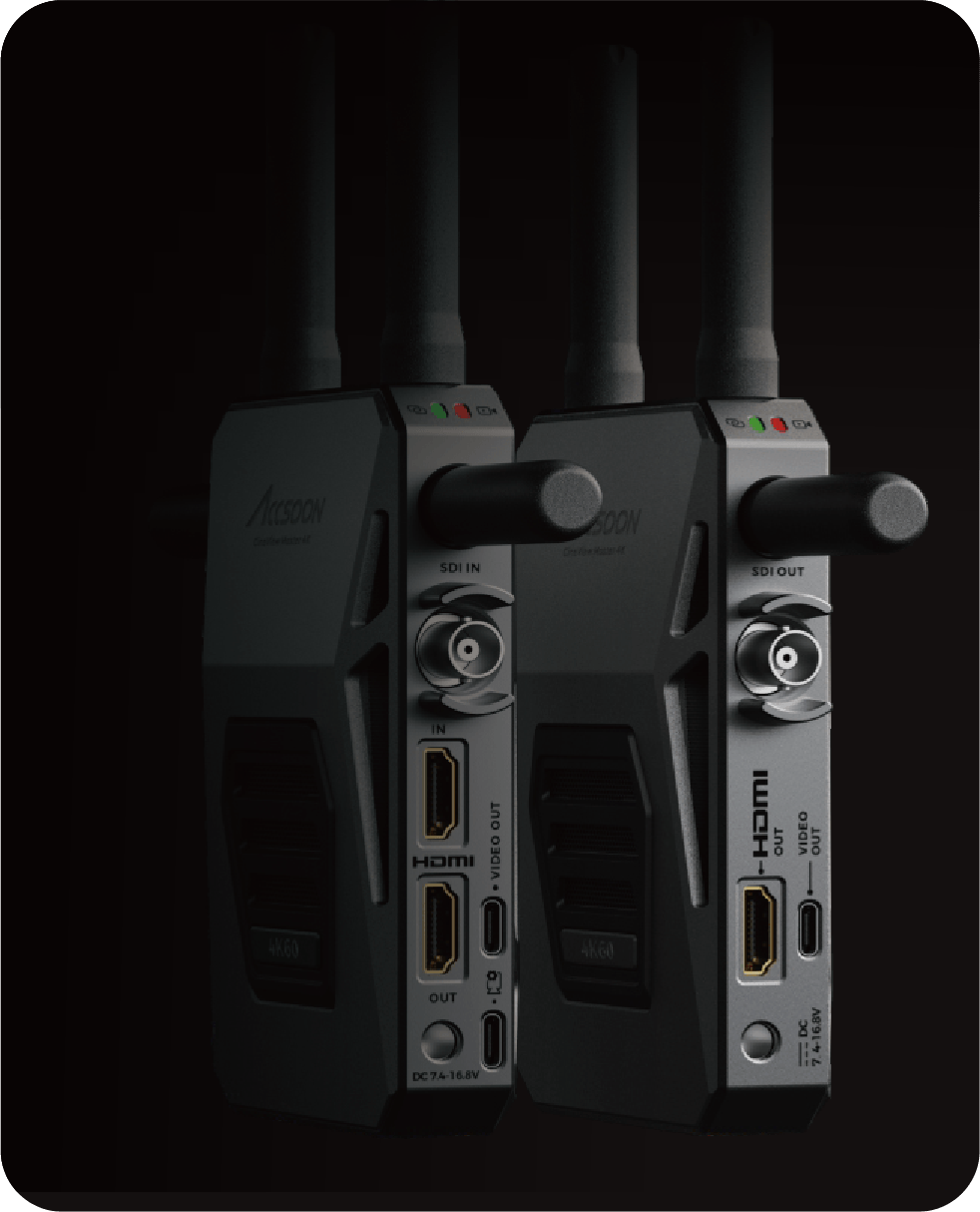

Versatile Interfaces

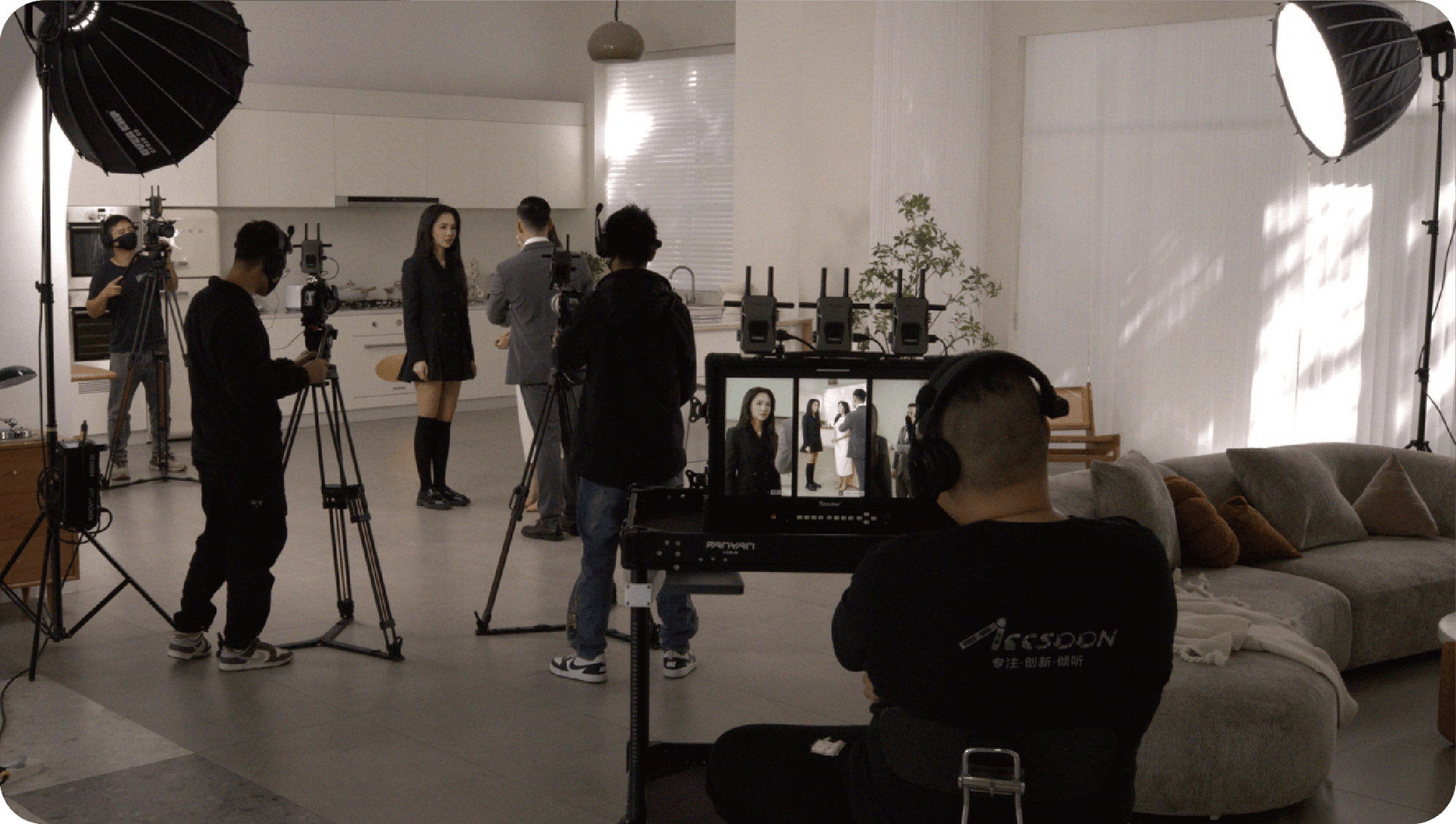

From Big Productions to Solo Shoots
CineView Master 4K Lite delivers a reliable,high-quality
monitoring experience wherever you create.
With support for up to DCI 4K60 and broad camera compatibility,
it adapts to productions of any size.
monitoring experience wherever you create.
With support for up to DCI 4K60 and broad camera compatibility,
it adapts to productions of any size.
Consistent Clarity, Next-Gen Video Engine
Powered by Accsoon’s production-proven next-generation video engine, CineView Master 4K Lite delivers stable, high-quality monitoring across a wide range of camera signals.
With support for the efficient H.265 codec, it ensures sharper image quality while maintaining the same bandwidth—giving you reliable performance and clear visuals in any production setup.
With support for the efficient H.265 codec, it ensures sharper image quality while maintaining the same bandwidth—giving you reliable performance and clear visuals in any production setup.

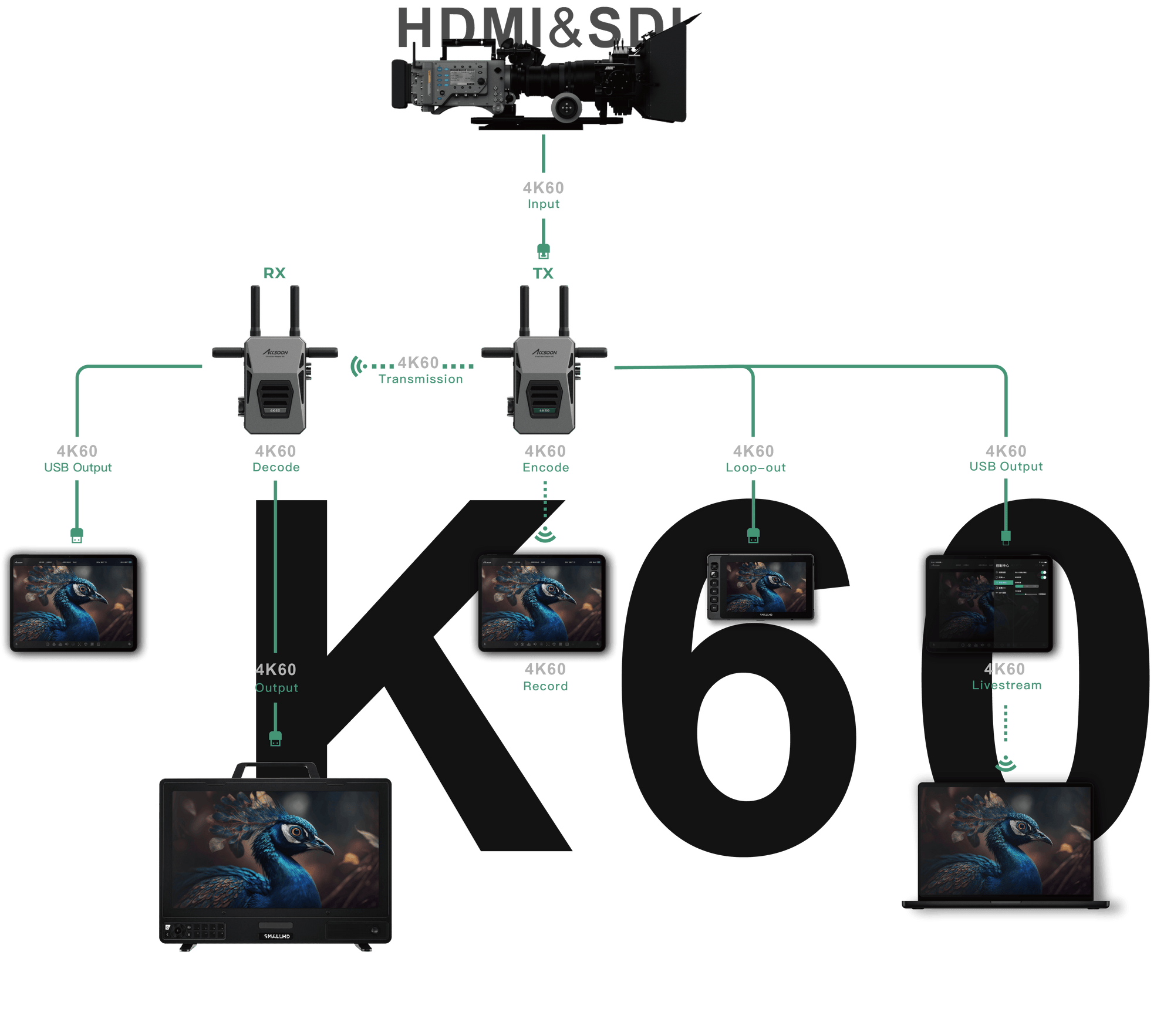

True End-to-End 4K60 Pipeline

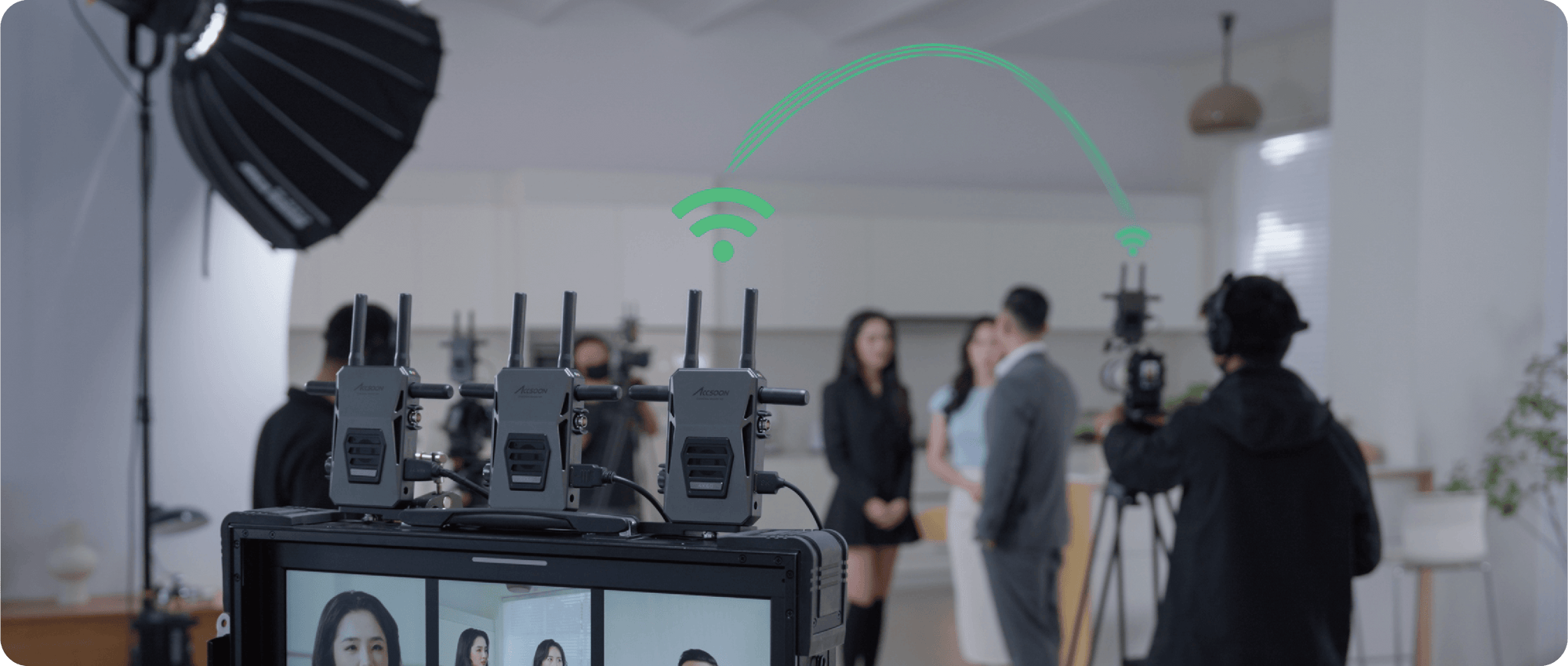

Proprietary RTMS 4.0 Protocol for Stable Performance
Powered by Accsoon’s proprietary RTMS 4.0 transmission protocol, CineView Master 4K Lite is engineered for optimal stability and reliable performance in demanding shooting environments.
.
It intelligently utilizes both 2.4GHz and 5GHz frequencies for seamless signal switching, ensuring smooth and consistent wireless monitoring..
.
With support for up to 10 groups of transmitters and receivers working in close range, it’s built to handle complex multi-device setups with ease.
.
It intelligently utilizes both 2.4GHz and 5GHz frequencies for seamless signal switching, ensuring smooth and consistent wireless monitoring..
.
With support for up to 10 groups of transmitters and receivers working in close range, it’s built to handle complex multi-device setups with ease.

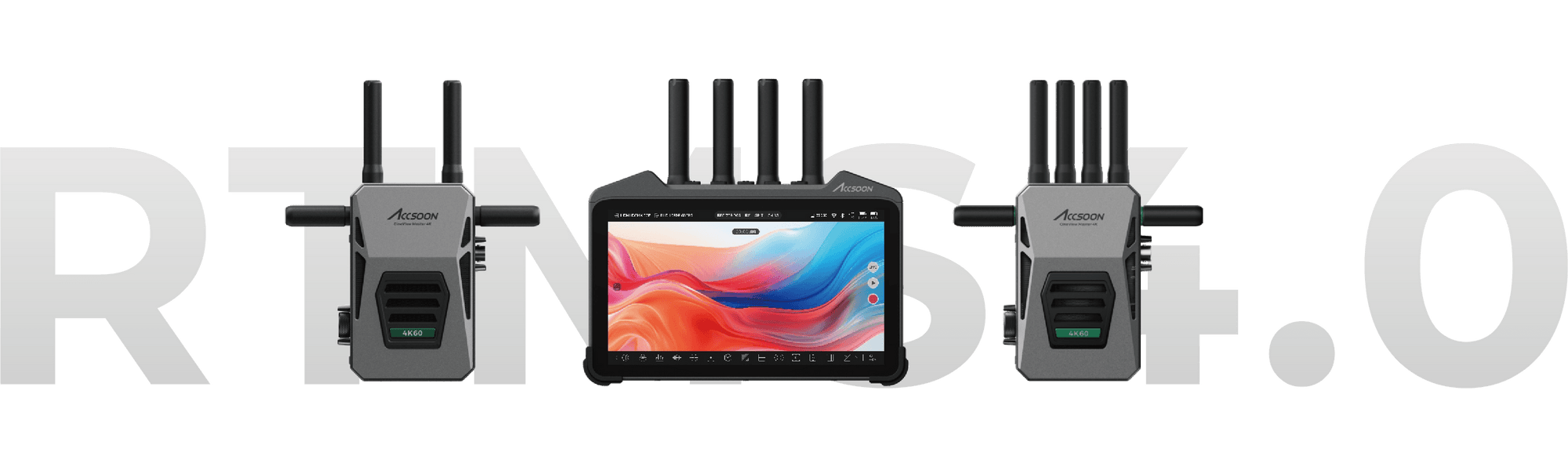

Meet the Next-generation CineView Ecosystem
TX (Transmitter) Supported Devices:
CineView M7(H) Pro (in RX mode), CineView Master 4K receivers
RX (Receiver) Supported Devices: CineView M7(H) Pro (in TX mode), CineView Master 4K transmitters
RX (Receiver) Supported Devices: CineView M7(H) Pro (in TX mode), CineView Master 4K transmitters

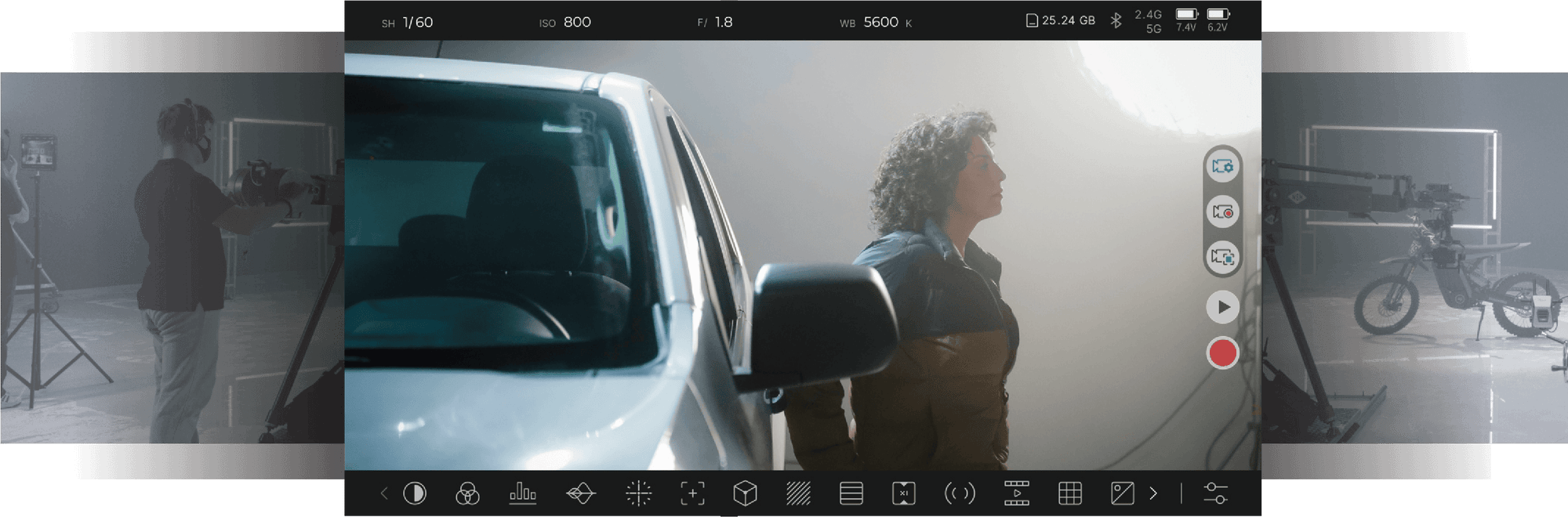

Seamless Control Access – Camera Control
Take full control without leaving your monitor. Easily adjust ISO, aperture, white
balance, and shutter speed in real time for a faster, more efficient shooting workflow.
balance, and shutter speed in real time for a faster, more efficient shooting workflow.
Specifications
| Protocol | Proprietary RTMS 4.0 protocol developed by Accsoon |
| Video Input | HDMI®, 3G SDI |
| Video Output | HDMI® Loop-Out USB Video Out |
| Camera Control | USB-C |
| SDI Input Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60 (Note: TX will display 1080P50/59.94/60) 1080PsF: 23.98/24/25/29.97/30PsF 720p: 50/59.94/60 |
| HDMI® Input Format | DCI 4K: 23.98/24/25/29.97/30/50/59.94/60p UHD: 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 720p: 50/59.94/60 |
| SDI Output Format | |
| HDMI® Output Format | |
| HDMI® Loop-out Format | Identical to the HDMI® video input |
| DC Port | 5.5mm×2.1mm, center positive |
| DC Voltage | 7.4~16.8V |
| Battery | Compatible with NP-F550, NP-F750, NP-F970 battery |
| Power Consumption | 4.6W average Without powering other devices* |
| Audio | HDMI® embedded, SDI embedded |
| Latency | TX to RX 1080p 60 < 35ms [1] 4K 60 < 65ms (Camera latency not included) TX to IOS 1080p 60 < 35ms [1] 4K 60 < 65ms (Camera latency not included) |
| Transmission Range | ≥ 350 m [2] (No obstacles, no interference) |
| Operating Environment Temperature | -10~40°C |
| Dimensions (Antennas Not Included) | 130mm × 95mm × 32 mm |
| Weight (Antennas Not Included) | 322g |
| Protocol | Proprietary RTMS 4.0 protocol developed by Accsoon |
| Video Input | |
| Video Output | HDMI® 3G SDI USB Video Out |
| Camera Control | |
| SDI Input Format | |
| HDMI® Input Format | |
| SDI Output Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A |
| HDMI® Output Format | DCI 4K: 23.98/24/25/29.97/30/50/59.94/60p UHD: 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p |
| HDMI® Loop-out Format | |
| DC Port | 5.5mm×2.1mm, center positive |
| DC Voltage | 7.4~16.8V |
| Battery | Compatible with NP-F550, NP-F750, NP-F970 battery |
| Power Consumption | 4.8W average Without powering other devices* |
| Audio | HDMI® embedded, SDI embedded |
| Latency | |
| Transmission Range | ≥ 350 m [2] (No obstacles, no interference) |
| Operating Environment Temperature | -10~40°C |
| Dimensions (Antennas Not Included) | 130mm × 95mm × 32 mm |
| Weight (Antennas Not Included) | 320g |
Product Comparison
CineView
Master 4K |
CineView
Master 4K Lite |
CineView
2 SDI |
CineView
SE |
|---|---|---|---|
| Wireless Transmission | |||
| 6GHz+2.4GHz+5GHz | 2.4GHz+5GHz | 2.4GHz+5GHz | 2.4GHz+5GHz |
| 8202ft / 2.5km | 1200ft / 350m | 1500ft / 450m | 1200ft / 350m |
| <25ms | <35ms | <50ms | <50ms |
| Connects up to 5 devices (1 wired + 4 wireless devices mix and match) |
Connects up to 5 devices (1 wired + 4 wireless devices mix and match) |
Connects up to 4 receivers or Apps | Connects up to 4 receivers or Apps |
| Video Transmission | |||
| Up to 4K60 | Up to 4K60 | Up to 1080p60 | Up to 1080p60 |
| H.264 H.265 (Higher Efficiency) |
H.264 H.265 (Higher Efficiency) |
H.264 | H.264 |
| 48KHz 16/20/24bit |
48KHz 16/20/24bit |
44.1KHz/48KHz 16/20/24bit |
44.1KHz/48KHz 16bit/24bit PCM |
| Input / Output | |||
| HDMI IN SDI IN HDMI LOOP OUT TX Input & Output |
HDMI IN SDI IN HDMI LOOP OUT TX Input & Output |
SDI IN HDMI IN HDMI LOOP OUT TX Input & Output |
SDI IN HDMI IN TX Input & Output |
| SDI OUT HDMI OUT RX Input & Output |
SDI OUT HDMI OUT RX Input & Output |
SDI OUT HDMI OUT/VC Live Streaming |
SDI OUT HDMI OUT RX Input & Output |
| Only on TX USB Video Out Port |
On both TX & RX USB Video Out Port |
✕ | ✕ |
| ✕ | Supported on TX Camera Control USB Port |
✕ | ✕ |
| Hardware & Power | |||
| Swappable Antenna | Swappable Antenna | Swappable Antenna | Swappable Antenna |
| Active Heat Dissipation (Fans) | Active Heat Dissipation (Fans) | Passive Heat Dissipation | Passive Heat Dissipation |
| NP-F Battery 7.4–16.8V DC IN V-Lock |
NP-F Battery 7.4–16.8V DC IN V-Lock |
NP-F Battery 7.4–16.8V DC IN 5V USB-C IN |
NP-F Battery 7.4–16.8V DC IN |
